Touch switch EU (8 buttons)

EUR 320.00
GTIN: 7640455522301

• Touch switch for up to 8 functions with compact module
• Suitable for installation in flush-mounted boxes
• Hybrid mounting frame for CH and EU
• Wide operating voltage range 100–240VAC
• Easy commissioning via Casambi

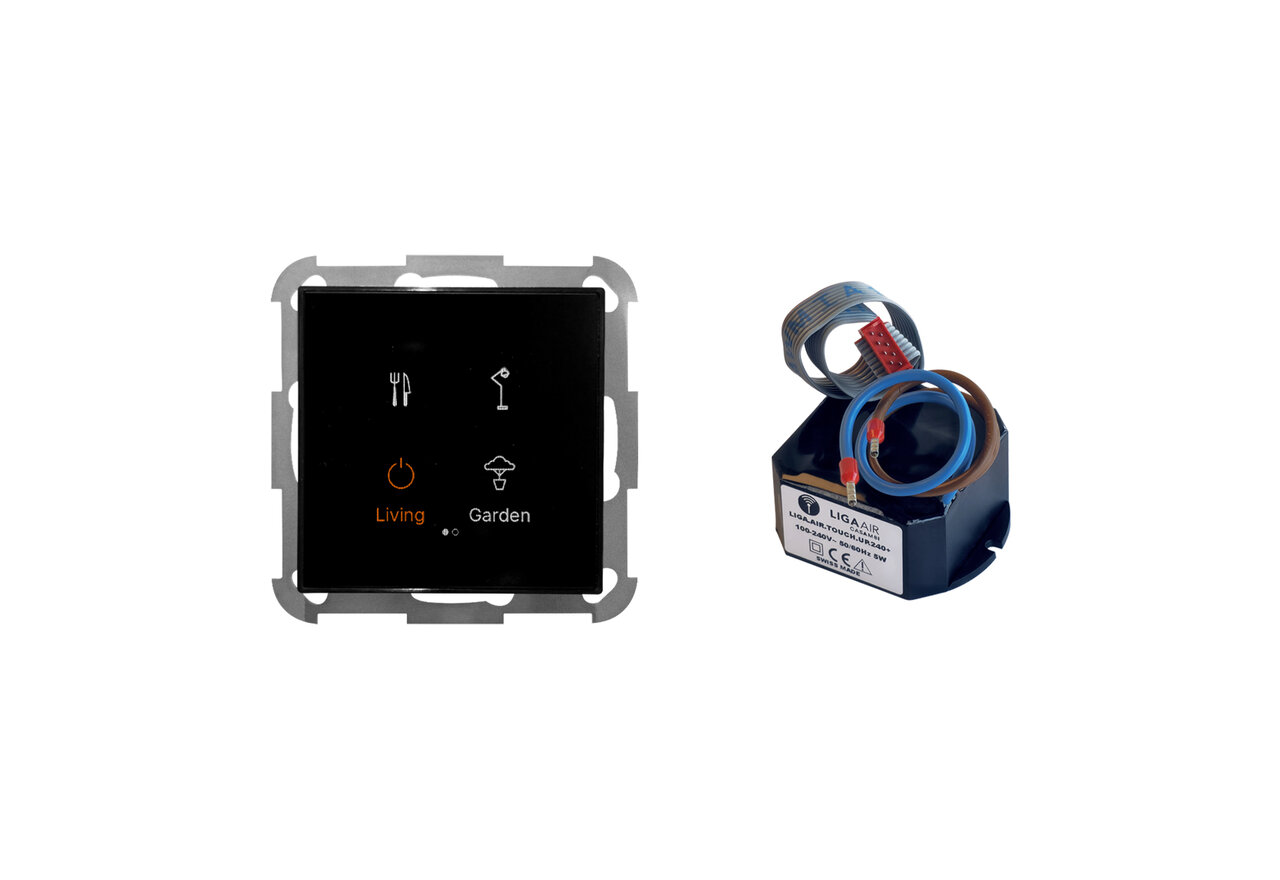

The flush-mounted touch panel module ALLT.M.D.55.60 is connected to the LIGA.AIR.TOUCH.60 or
LIGA.AIR.TOUCH.55 touch panel via a ribbon cable and is supplied directly with mains voltage 100–240VAC.
Besides the power supply, it also provides the connection between the touch panel and CASAMBI.

The pre-defined symbols/icons, labels and functions of the touch panel buttons are configured exclusively via
the CASAMBI app; no additional software is required.

By choosing from common button symbols and adding custom labels to the button fields, this touch panel lets
you create an easily understandable user interface for the CASAMBI lighting system in next to no time.

The module is potted in a black ABS housing and measures 44 x 44 x 23mm. This compact housing design
allows easy installation in flush-mounted boxes or in a cable duct.

23 symbols/icons: to identify the button functions
Each button can be assigned one of 23 symbols/icons, so its function is clear at a glance.

Text editor: for labelling the buttons (optional)
A text of up to 8 characters can be added to each selected symbol/icon.

Numeric code: for more security (optional)
Page 1 and page 2 can be protected with a numeric code.

Screen timeout
Prevents unintended operation and puts the display into standby mode after an adjustable 3 to 600 seconds.
This also protects the touchscreen against burn-in.
